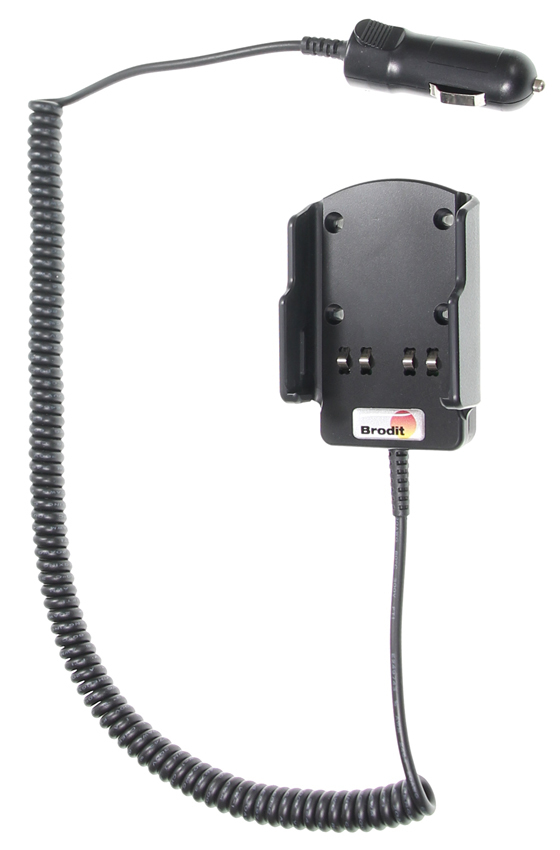

Brodit 530803 holder Active holder Two-way radio Black

For use with Li-Ion or Li-Poly batteries.

Are you using a two-way radio every day in your work? Then a Brodit active holder will make your days much easier! By keeping the device in an active holder, you will always have it within easy sight and reach while driving between jobs. Not only that; the holder also supplies a fully charged battery at all times.

With LED indicator to show that charging is in progress, the indicator changes from red to green when fully charged. Attach onto a ProClip Mounting Platform.

INSTALLATION INSTRUCTIONS:
Charging Specifications:
Battery Chemistry: Li-ion or Li-Poly batteries
Input Voltage: 11-30 V
Charging Voltage: 8.4 V
Timer for Max. Charging Time: Automatic, stops at 8.4 V
Max. Charging Time: 2-3 hours depending on battery capacity
Rapid Charge: 1,2 A +/- 5%
Trickle Charge: 0 to 50 mA
LED Charging Indicator: LED Red to Green indicator
Temperature Control: Controlled by battery and charger
Operating Temperature: -40 to 50 °C (can be restricted by battery chemistry)
RoHS Compliant: Yes
Input Transient Protected: Withstands +150V & -450V. A 2,5A fuse is mounted on the incoming supply.
Output Short Circuit Protected: The charger will supply a maximum current of 1,2 A which protects both the charger and the connected equipment. The current limit is set to standards of the producer and shall not be higher.
