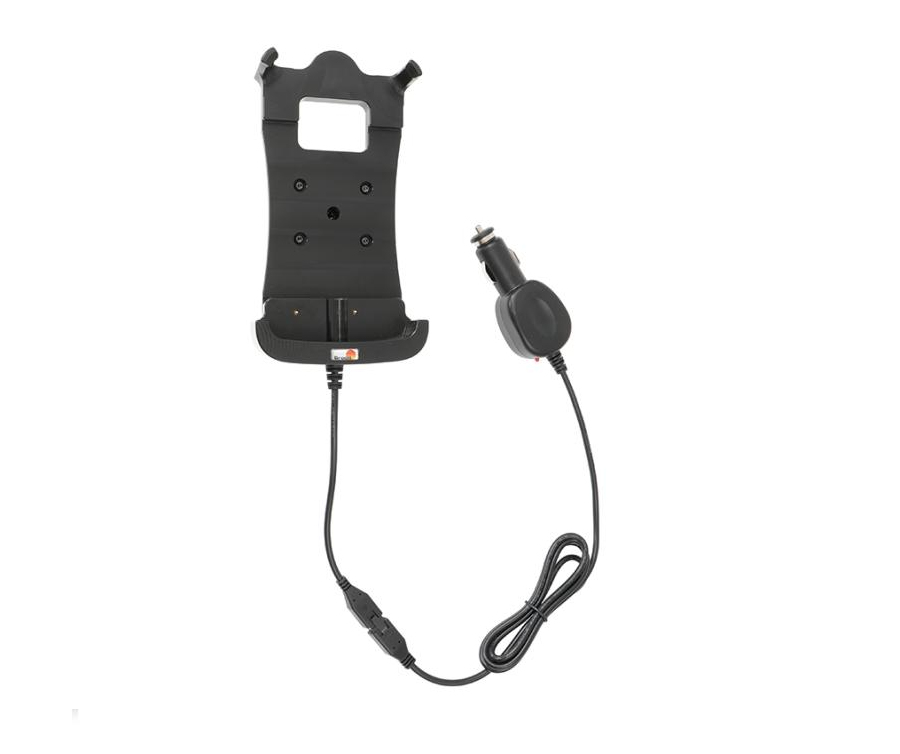

Brodit 712268 holder Active holder Handheld mobile computer Black

SKU
712268
kr 1 425,12 eks. mva.
Ikke på lager Bestillingsvare
3 A, 12/24 V, 94 x 175 x 63 mm, 295 g, Black
With tilt swivel. 3A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with or without handstrap.

The active holder charges your battery when it is in the holder. The charging device connects to the unit automatically when you put the unit in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle's cigarette lighter socket, 12/24 Volt.

Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.

Charging specification:
- Input voltage: DC/10-24V
- Charging voltage: DC/4.6-5.3V
- Output current(Typ): 3.0A
- Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection
- LED charging indicator: Product output indicator
- Operating temperature: 0°C ~ +40°C
- Storage temperature: -20°C ~ +80°C
- RoHS compliant: ROHS
SKU 712268
EAN 7320287122688
Specification
Design
Device mount typeClip mount
OrientationVertical
Connectivity technologyWired
Mobile device typeHandheld mobile computer
CompatibilityItem no 712268 fits: Honeywell CT60XP (For all countries)
TypeActive holder
Proper useCar/Indoor
Product colourBlack
MaterialABS, Acetal, Plastic
Ergonomics
Swivel angle360°
Tilt angle range0 - 17°
Technical details
Connectivity technologyWired
Mobile device typeHandheld mobile computer
CompatibilityItem no 712268 fits: Honeywell CT60XP (For all countries)
TypeActive holder
Proper useCar/Indoor
Product colourBlack
MaterialABS, Acetal, Plastic
Tilt angle range0 - 17°
Swivel angle360°
Compliance certificatesRoHS
Performance
Connectivity technologyWired
Power
Power source typeDC
Output voltage12 - 24 V
Weight & dimensions
Width94 mm
Depth63 mm
Height175 mm
Weight295 g
Packaging data
Quantity per pack1 pc(s)
Manufacturer Brodit
Availability N
