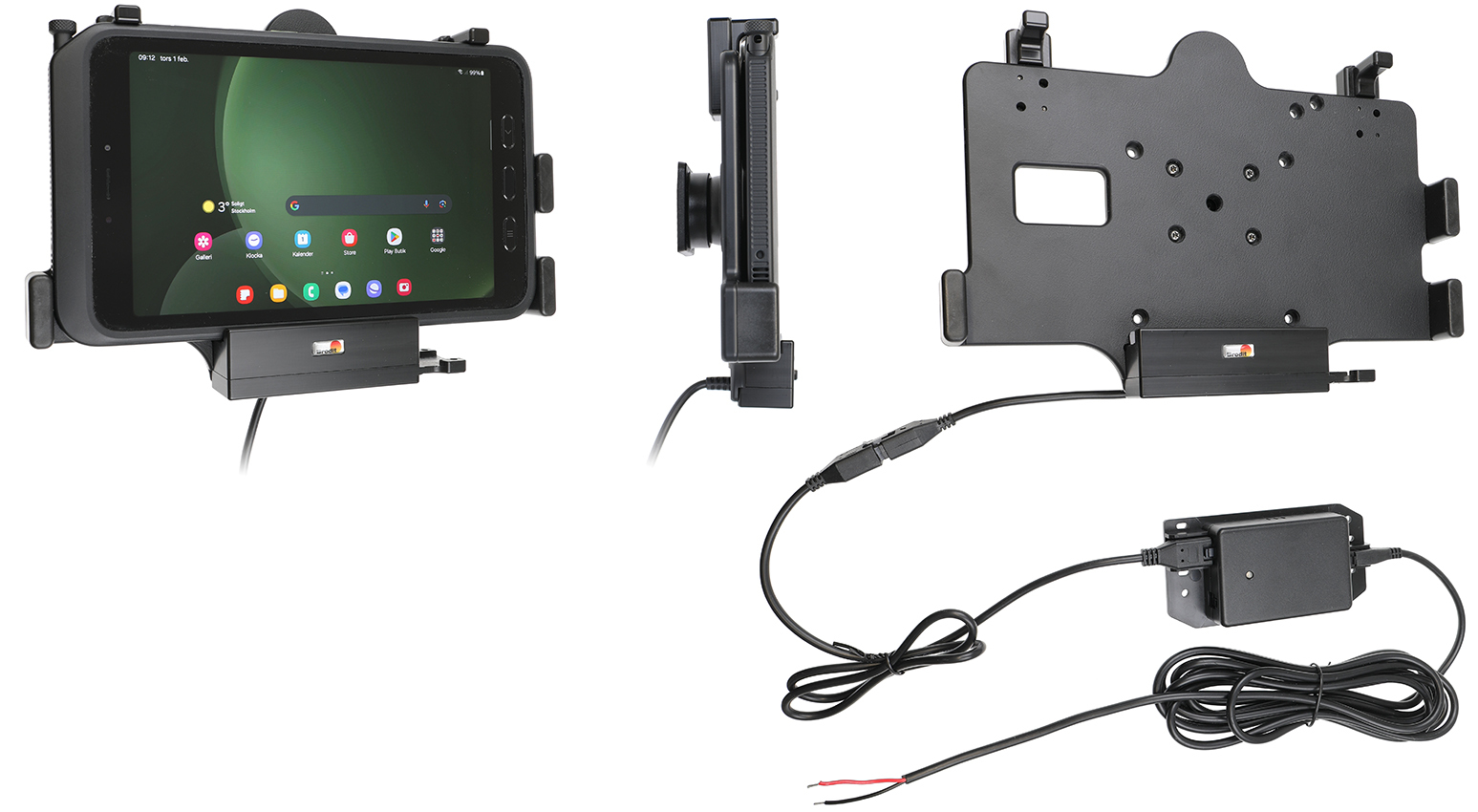

Brodit 713390 holder Active holder Tablet/UMPC Black

SKU
713390
kr 1 678,80 eks. mva.
Ikke på lager Bestillingsvare
Active holder for fixed installation
Use an active holder for your Galaxy Tab Active while driving and you will always have a freshly charged battery! The active holder is to be connected inside the dashboard. It provides a discreet and neat installation without any cables hanging over the interior. Safe and convenient! 12/24 Volt. The product is E-approved. Connect the power cable with a 2A fuse. 2,7A charger. Charging via pogo plug. Professional installation recommended. The holder is equipped with a USB-Host port so you can connect an accessory.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden.

Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on the car’s headrest, installed onto a Brodit headrest mount.





SKU 713390
Specification
Design
Device mount typeScrew mount
Mobile device typeTablet/UMPC
CompatibilitySamsung Galaxy Tab Active 5 SM-X300/SM-X306B, Samsung Galaxy Tab Active 3 SM-T570/SM-T575
TypeActive holder
Proper useCar/Indoor
Product colourBlack
MaterialAcetal, Acrylonitrile butadiene styrene (ABS)
Country of originSweden
Ergonomics
Swivel angle360°
Tilt angle range0 - 17°
Built-in chargerYes
VESA mountingYes
Maximum VESA mount75 x 75 mm
Technical details
Mobile device typeTablet/UMPC
CompatibilitySamsung Galaxy Tab Active 5 SM-X300/SM-X306B, Samsung Galaxy Tab Active 3 SM-T570/SM-T575
TypeActive holder
Proper useCar/Indoor
Product colourBlack
MaterialAcetal, Acrylonitrile butadiene styrene (ABS)
Tilt angle range0 - 17°
Country of originSweden
Built-in chargerYes
Swivel angle360°
Power
DC voltage range10 - 30 V
Built-in chargerYes
Weight & dimensions
Width248 mm
Depth45 mm
Height170 mm
Weight446 g
Manufacturer Brodit
Availability N
