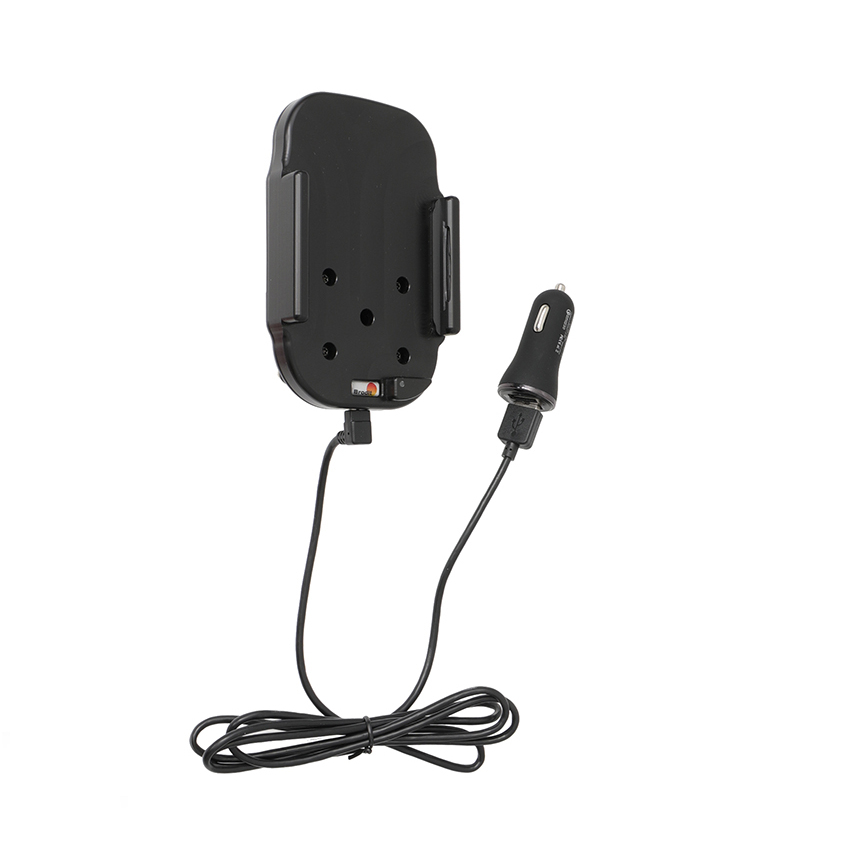

With USB-A cable + cig-plug adapter with 2 USB-A ports: QC 3.0A + 2.4A. With tilt swivel. 12/24 Volt. 5/7.5/10/15W wireless charging. For use with a naked device (not for use with a case).
Active holder that charges your device via wireless Qi technology. Keep your phone's battery fully charged, always within easy sight and reach! Neat, discreet and convenient. Customized discreet design with a perfect, firm fit. For use with a naked device (not for use with a case). Qi certified. 5 / 7.5 / 10 / 15W wireless charging. LED charge status.
With USB-A-cable with cig-plug adapter for connecting to the vehicle's 12/24V socket. The cig-plug adapter has two USB-A ports: QC 3.0A + 2.4A. To ensure your holder works in fast charging modes the cable that connects the holder to the power supply should always be connected to the Green USB-A port on the power supply unit (Output: 1). The White USB-A charging port (Output: 2) is spare and can be used to charge secondary devices such as mobile phones / navigation units. This is a 15W fast charging holder. Fast charging is device dependent.
You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car with a one-hand grip.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. 12/24 Volt. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Manufactured in Sweden. Attach onto a ProClip mounting platform.
Charging specification:
TECHNICAL SPECIFICATIONS WIRELESS CHARGING HOLDER:
• Power Input Voltage: 5 V DC | 9V DC | 12 V DC
• Supported Power Profiles: Qualcomm Quick Charge 2.0 | 3.0
• Output Power: 5W | 7.5W | 10W | 15W
• Tx/Rx Transmit Distance: 3 - 4.5mm
• Transmission Efficiency: 70% +/- 5%
• Operating Temperature: 0° - 40° Centigrade
• Storage Temperature: -20° - +60° Centigrade
• Short Circuit Protection: Auto Recovery
• Over Current Protection: Auto Recovery
• Product Approvals: CE-RED | E-Mark | FCC | Qi 15W EPP
• Product Compliance: RoHs | WEEE | REACH
TECHNICAL SPECIFICATIONS POWER SUPPLY UNIT:
• Power Output Voltage:
• Green USB-A Port: (recommended port for this holder) Qualcomm 3.0 3.6 – 6.3V ~ 6V/3A | 6.2 – 9V/2A | 9.2 – 12V/1.5A. Rated power 18 Watts max
• White USB-A Port: 4.9 ~ 5.25V/2.4A. Rated power 12 Watts max
• Output Voltage: 5V | 9V | 12V(Nominal) RIPPLE: 300mV pk-pk at max
• Input Voltage Range: DC 12--24V DC, can handle 40V spikes
• Input Current: 3.0A DC max
• DC-DC Conversion Efficiency: Over 86% Typical
• Product Approvals: CE, RoHS, FCC, UL, QC3.0 Quick Charge 3.0
CONNECT YOUR HOLDER
Connect the Type-C USB cable to the holder. Carefully slide your phone straight down into the holder until it rests naturally at the bottom. The wireless charger will automatically connect and start charging. Your phone can be removed anytime while charging. When removing the phone the charging automatically stops.
