With 2 USB-A ports: QC 3.0A + 2.4A. With tilt swivel. 12/24 Volt. 5/7.5/10/15W wireless charging. For use with a naked device (not for use with a case).

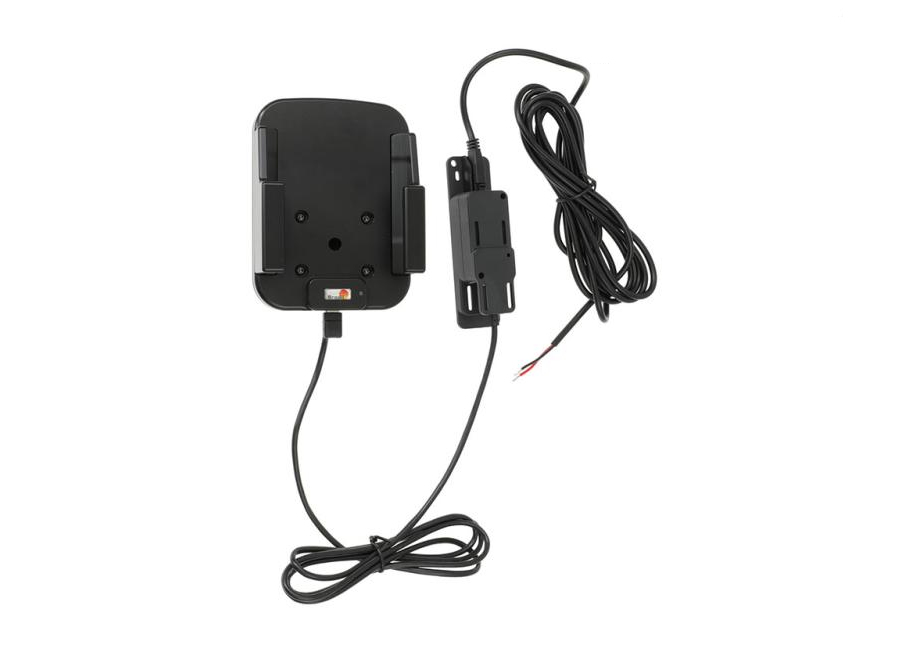

Active holder that charges your device via wireless Qi technology. Keep your phone's battery fully charged, always within easy sight and reach! Neat, discreet and convenient. Customized discreet design with a perfect, firm fit. For use with a naked device (not for use with a case). Qi certified. 5 / 7.5 / 10 / 15W wireless charging. LED charge status.
The holder is to be connected inside the dashboard, providing an elegant installation without any cables hanging over the interior. The charging box has two USB-A ports: QC 3.0A + 2.4A. To ensure your holder works in fast charging modes the cable that connects the holder to the power supply should always be connected to (Output: 1) USB-A port on the power supply unit. The (Output: 2) USB-A charging port is spare and can be used to charge secondary devices such as mobile phones / navigation units. This is a 15W fast charging holder. Fast charging is device dependent.
You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car with a one-hand grip.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. 12/24 Volt. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Manufactured in Sweden. Connect the power cable with a 2A fuse. Professional installation recommended. Attach onto a ProClip mounting platform.
Charging specification:
TECHNICAL SPECIFICATIONS WIRELESS CHARGING HOLDER:
• Power Input Voltage: 5 V DC | 9V DC | 12 V DC
• Supported Power Profiles: Qualcomm Quick Charge 2.0 | 3.0
• Output Power: 5W | 7.5W | 10W | 15W
• Tx/Rx Transmit Distance: 3 - 4.5mm
• Transmission Efficiency: 70% +/- 5%
• Operating Temperature: 0° - 40° Centigrade
• Storage Temperature: -20° - +60° Centigrade
• Short Circuit Protection: Auto Recovery
• Over Current Protection: Auto Recovery
• Product Approvals: CE-RED | E-Mark | FCC | Qi 15W EPP
• Product Compliance: RoHs | WEEE | REACH
TECHNICAL SPECIFICATIONS POWER SUPPLY UNIT:
• Power Output Voltage:
• Output 1 USB-A Port: (recommended port for this holder) Qualcomm 3.0 3.6 – 6.3V ~ 6V/3A | 6.2 – 9V/2A | 9.2 – 12V/1.5A. Rated power 18 Watts max
• Output 2 USB-A Port: 4.9 ~ 5.25V/2.4A. Rated power 12 Watts max
• Output Voltage: 5V | 9V | 12V(Nominal) RIPPLE: 300mV pk-pk at max
• Input Current: 3.0A DC max
• Molex 2 Pin Input: DC 12--24V/3A, can handle 40V spikes. (BLACK= Chassis/Negative- | RED= Key switched 12/24V DC Supply+)
• Product Approvals: CE, RoHS, FCC, UL, QC3.0 Quick Charge 3.0
CONNECT YOUR HOLDER
Connect the Type-C USB cable to the holder. Carefully slide your phone straight down into the holder until it rests naturally at the bottom. The wireless charger will automatically connect and start charging. Your phone can be removed anytime, then the charging automatically stops.
