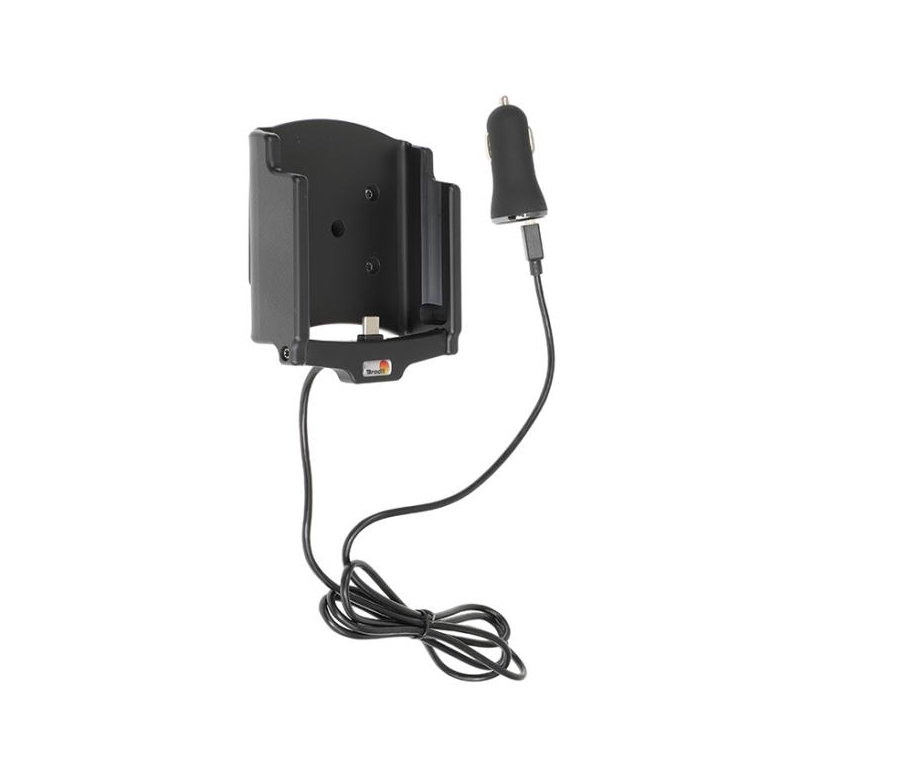

Brodit 721252 holder Active holder Mobile computer Black

SKU
721252
kr 1 037,47 eks. mva.
Ikke på lager Bestillingsvare
USB, 88 x 105 x 60 mm, 170 g, Black
With USB-A cable + cig-plug adapter with 2 USB-A ports: QC 3.0A + 2.4A. With tilt swivel. 12/24 Volt. For devices with original Boot/skin. Keep your phone's battery fully charged in an active holder, always within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. With USB-A cable with cig-plug adapter, choose to connect either to the vehicle's USB-A outlet or the 12/24V socket. The cig-plug adapter has two USB-A ports: QC 3.0A + 2.4A. You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car. The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a ProClip mounting platform. Charging specification: - Output Connector Type: Dual USB Type-A Female. - Output Voltage: 5V, 9V, 12V(Nominal) - Output Current: - USB Port 1: 4.9V ~ 5.25V 2.4A (White port, recommended for Apple) - USB Port 2: 3.6V ~ 6V/3A 6.2-9V/2A 9.2-12V/1.5A (Green port, recommended for Android etc) - Output Voltage Ripple: 300mV pk-pk at Max Load - Input Voltage Range: DC 12--24V DC, Input can handle 40V Load dump translent events - Input Current: 3.0 A DC Max - Input Current with No device attached: 0.005A - DC-DC Conversion Efficiency: Over 86% Typical - Rated Power: - USB Port 1: 12 Watts Max. White port. - USB Port 2: 18 Watts Max. Green port.
SKU 721252
EAN 7320287212525
Specification
Design
Device mount typeClip mount
OrientationVertical
Mobile device typeMobile computer
CompatibilityItem no 721252 fits: Zebra EC50 (For all countries) Zebra EC55 (For all countries)
TypeActive holder
Proper useCar/Indoor
Product colourBlack
MaterialABS, Acetal, Plastic
USB portYes
USB 2.0 ports quantity2
Ergonomics
Swivel angle360°
Tilt angle range0 - 17°
Built-in chargerYes
Technical details
Mobile device typeMobile computer
CompatibilityItem no 721252 fits: Zebra EC50 (For all countries) Zebra EC55 (For all countries)
TypeActive holder
Proper useCar/Indoor
Product colourBlack
MaterialABS, Acetal, Plastic
Tilt angle range0 - 17°
Built-in chargerYes
Swivel angle360°
Power
Power source typeDC, USB
DC voltage range12 - 24 V
Built-in chargerYes
Weight & dimensions
Width88 mm
Depth60 mm
Height105 mm
Weight170 g
Packaging data
Quantity per pack1 pc(s)
Manufacturer Brodit
Availability N
