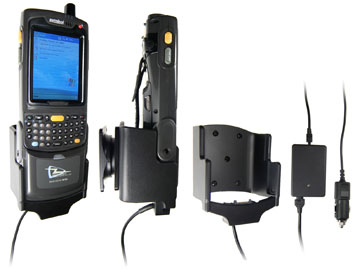

Brodit Active Holder, Tilt Swivel

With cig-plug. For TSL module. Fits devices with standard and extended battery. The active holder charges your battery when it is in the holder. Fits devices with a TSL module, for example a GPS module, contact smart card reader, multi-ISO HF RFID reader etc. Can also be used without the TSL module.

The charging device connects to the PDA automatically when you put the PDA in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle’s cigarette lighter socket, 12/24 Volt. The holder fits devices both with standard and extended battery. Attach onto ProClip Mounting Platform. Please read all of the instructions and look at the pictures before attaching the holder.

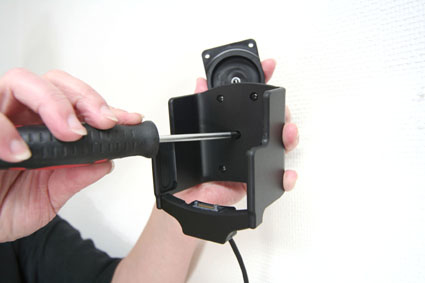

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

2. Place the attaching plate on desired position. Screw the attaching plate into place with the enclosed screws.

3. Place the holder over the attaching plate so the tilt swivel fits. Screw the holder onto the attaching plate.

4. The holder is in place.
