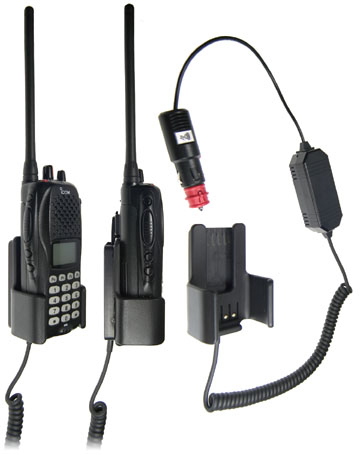

Brodit Charger for Two Way Radio

The Vehicle Charging Cradle is custom made for a perfect fit. The cradle holds a two-way radio in an upright position for better reception. Each has a cigarette lighter charging cord permanently attached to the cradle with built in contact points for the battery. Utilizing a Delta-V charging technique, the cradle provides rapid and trickle charging. The Vehicle Charging Cradle can accommodate original battery sizes for a variety of two-way radios. Each cradle has a number of features such as a security timer, overheat sensor, and LED indicator to show that charging is in progress. The indicator changes from red to green when fully charged. Attach onto a ProClip Mounting Platform. General discription:
- Stops on minus delta V
- Timer for maximum charging time
- Possibility of temperature-control with NTC-resistor
- LED status changes when battery is maximum charged

Specifications:
Input voltage: 10-30 V
Max. charging time: 80 min
Fast charging current: 650 mA
Trickle charge: 6% of maximum fast charging current
Restart: Possible. Only with an exact number of cells
Battery voltage: 12 V
Number of cells: 6
Serial diode in battery: Yes
Quiesent current: 50 mA at trickle
