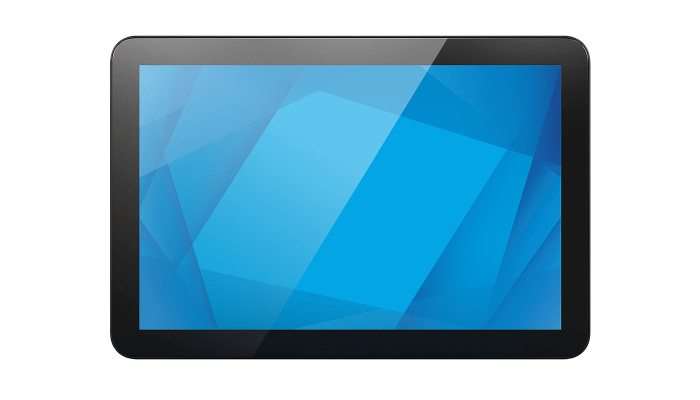

Elo Touch Solutions 1004L Digital signage flat panel 25.6 cm (10.1") LED 360 cd/m² WXGA Black Touchscreen

SKU
E968703
kr 4 214,20 eks. mva.
132 På lager
1004L 10-inch Touchscreen Monitor
The 1004L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.

Create the perfect payment stack with the 10" touchscreen.
Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1004L offers the perfect compact touch display with the connectivity you need at the point of sale.
SKU E968703
EAN 0843173155579
Specification
Display
Panel typeTFT-LCD
Display number of colours16.7 million colours
Number of simultaneous touchpoints10
TouchscreenYes
Active display area (W x H)216.96 x 135.6 mm
Display technologyLED
Display diagonal25.6 cm (10.1")
Display resolution1280 x 800 pixels
Display brightness360 cd/m²
HD typeWXGA
Response time30 ms
Contrast ratio (typical)800:1
Viewing angle, horizontal170°
Viewing angle, vertical170°
Display diagonal (metric)26 cm
Horizontal scan range30 - 80 kHz
Number of displays1
Touchscreen technologyProjected capacitive system
Native refresh rate60 Hz
Multi-touchYes
Ports & interfaces
USB connector typeMicro-USB, USB Type-C
USB portYes
DC-in jackYes
Ethernet LANNo
HDMI ports quantity1
DVI portNo
USB Power Delivery (USB PD)Yes
USB Power Delivery up to18 W
Audio
Number of built-in speakers2
RMS rated power4 W
Built-in speaker(s)Yes
Design
Product designDigital signage flat panel
OrientationHorizontal/Vertical
Product colourBlack
Panel mounting interface75 x 75 mm
VESA mountingYes
Screen shapeFlat
Performance
PurposeUniversal
International Protection (IP) codeIP54
Mean time between failures (MTBF)50000 h
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)Yes
Number of OSD languages8
Power
Power consumption (sleep)1 W
Power consumption (off)0.25 W
Power consumption (typical)6.5 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)D
Energy consumption (SDR) per 1000 hours7 kWh
Weight & dimensions
Display width249 mm
Display depth168 mm
Display height25 mm
Display weight900 g
Packaging data
Package width308 mm
Package depth143 mm
Package height223 mm
Package weight2.2 kg
Cables includedHDMI, Power, USB Type-A to USB Type-C
Packaging content
Cables includedHDMI, Power, USB Type-A to USB Type-C
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Technical details
VESA mountingYes
USB connector typeMicro-USB, USB Type-C
Panel typeTFT-LCD
Number of simultaneous touchpoints10
Network
Ethernet LANNo
Other features
USB connector typeMicro-USB, USB Type-C
Panel typeTFT-LCD
Number of simultaneous touchpoints10
Mean time between failures (MTBF)50000 h
Display technologyLED
DC-in jackYes
Energy efficiency scaleA to G
Manufacturer Elo Touch Solutions
Availability Y
