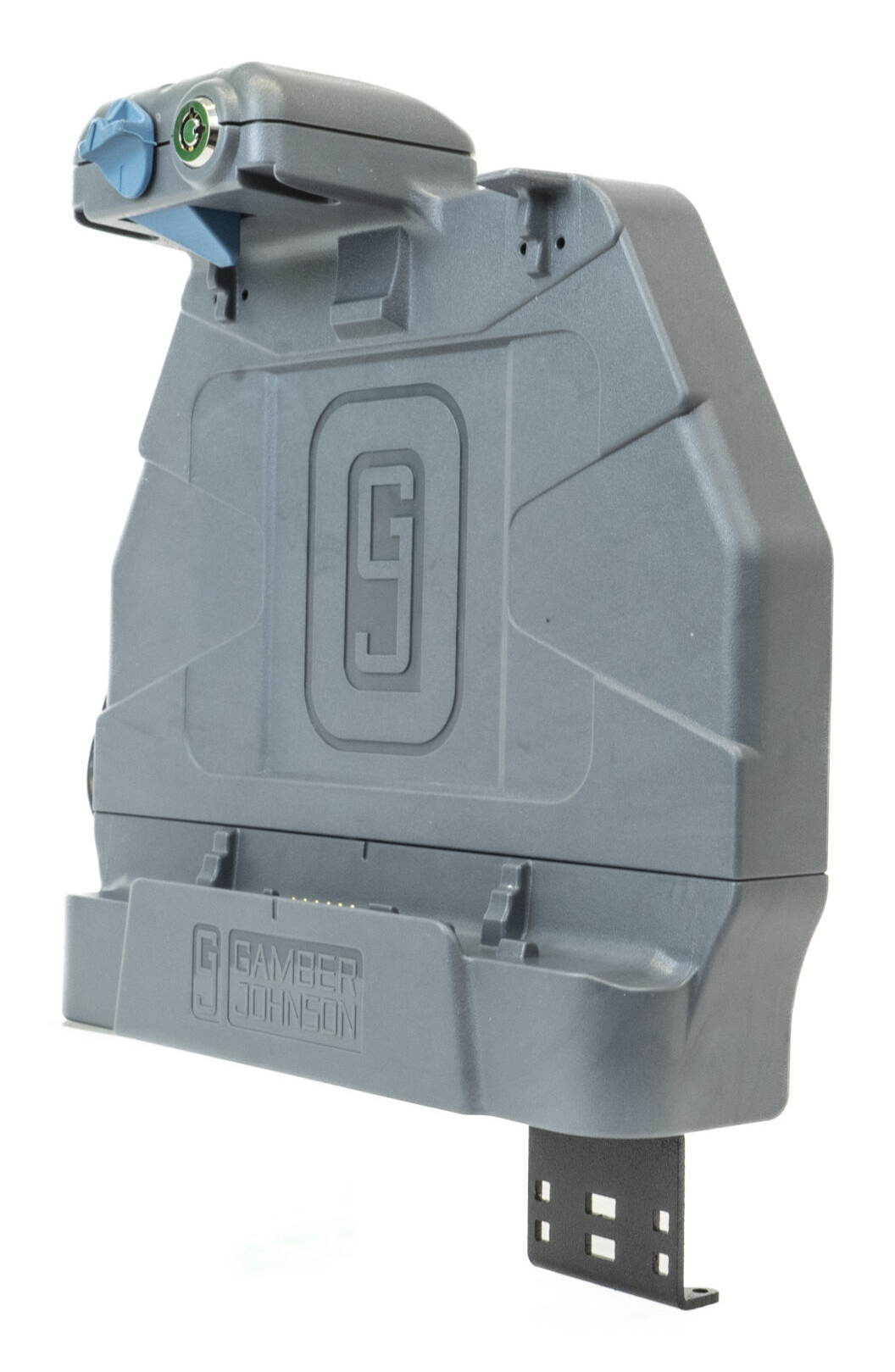

Gamber-Johnson ET40/45 mobile device dock station Tablet Grey

SKU
7160-1801-20
kr 3 142,37 eks. mva.
Ikke på lager Bestillingsvare
USB 2.0 x 2, Serial Port, RJ-45, Zebra ET4X 8, Grey, 22.86 x 19.69 x 7.11cm, 0.59kg
Combine the Zebra ET4X enterprise tablet with Gamber-Johnson’s new vehicle docking station, with dual powered USBs, Serial, and ethernet port replication for added productivity. Each powered USB port provides 1.5A, strong enough to power a long-range scanner and a printer or other peripheral. This dock will keep the ET4X tablet charged all day long and provides the port replication to connect the right peripheral devices to get the job done.

Power Supply:
None, use one of the following:

- Lind 11-16V Automobile Power Adapter (7300-0415)
- LIND 12-32V Isolated Power Adapter (7300-0466)
- LIND 20-60V Isolated Power Adapter (7300-0467)
- LIND 72-110V Isolated Power Adapter (7300-0418)
- Lind AC-12V Material Handling Power Adapter (7300-0472)

Testing Specifications:
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE Certifications
- RCM
- Safety
SKU 7160-1801-20
Specification
Performance
Basic device typeTablet
Brand compatibilityZebra
CompatibilityZebra ET4X 8" Rugged Tablet (Zebra's rugged frame is required in order to work with docking station)
Product colourGrey
Card reader integratedNo
VESA mountingYes
Maximum VESA mount75 x 75 mm
Plug and PlayYes
Built-in speaker(s)No
Network
BluetoothNo
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Docking connector typePogo
USB 2.0 ports quantity2
Audio outputNo
HDMINo
RS-232 interfaceYes
USB hubNo
Serial ports quantity1
DC-in jackYes
BluetoothNo
Card reader integratedNo
Power
Power source typeDC
DC input voltage12 V
Weight & dimensions
Width196.9 mm
Depth71.1 mm
Height228.6 mm
Weight590 g
Packaging data
Quantity1
Packaging content
Adapter includedNo
Packaging contentMounting Hardware
Design
Product colourGrey
Technical details
Quantity1
USB hubNo
Compliance certificatesCE, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Manufacturer Gamber-Johnson
Availability N
