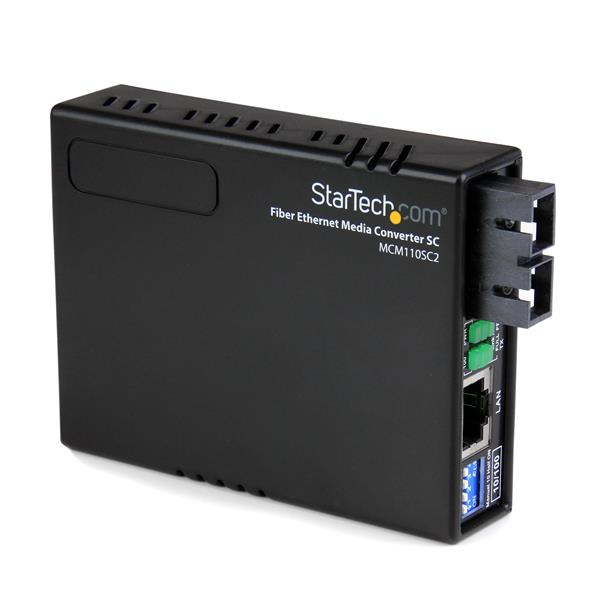

StarTech.com 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km

SKU
MCM110SC2EU
kr 698,18 eks. mva.
Ikke på lager Bestillingsvare
StarTech.com 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km
The MCM110SC2EU 10/100 Multi Mode Fiber Ethernet Media Converter (SC, 2 km) creates a cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals, to extend an Ethernet network connection over an SC-terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
SKU MCM110SC2EU
EAN 0065030836838
Specification
Network
Jumbo frames supportYes
Flow control supportYes
Auto-negotiationYes
Jumbo frames9000
Converter input interface100BASE-FX, 100Base-TX, 10Base-T
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10,100 Mbit/s
Duplex systemFull, Half
Auto MDI/MDI-XYes
Maximum data transfer rate100 Mbit/s
Fiber optic connectorSC
Performance
Wavelength-division multiplexing (WDM)No
Wavelength1310 nm
Maximum transfer distance2000 m
Fiber mode structureMulti-mode
Mean time between failures (MTBF)65000 h
Jumbo frames supportYes
Flow control supportYes
Auto-negotiationYes
Features
Housing materialPlastic
LED indicatorsActivity, Link, Power
Product colourBlack
InternalNo
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
DC-in jackYes
Power
Power plug typeType M
Power over Ethernet (PoE)No
Input voltage230 V
Output voltage12 V
Output current0.2 A
Weight & dimensions
Width75 mm
Depth95 mm
Weight90.5 g
Height20 mm
Package depth175 mm
Package width145 mm
Package height65 mm
Package weight300 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Packaging content
AC adapter includedYes
ManualYes
Packaging data
Package depth175 mm
Package width145 mm
Package height65 mm
Package weight300 g
Technical details
Housing materialPlastic
Wavelength1310 nm
Maximum transfer distance2000 m
Fiber mode structureMulti-mode
InternalNo
Harmonized System (HS) code85176990
Compliance certificatesRoHS
Indication
LED indicatorsActivity, Link, Power
Design
Housing materialPlastic
LED indicatorsActivity, Link, Power
Product colourBlack
CertificationCE, FCC
InternalNo
Endurance
Mean time between failures (MTBF)65000 h
Colour
Product colourBlack
Certificates
CertificationCE, FCC
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code85176990
Manufacturer StarTech.com
PDF Url https://objects.icecat.biz/objects/m
Availability N
