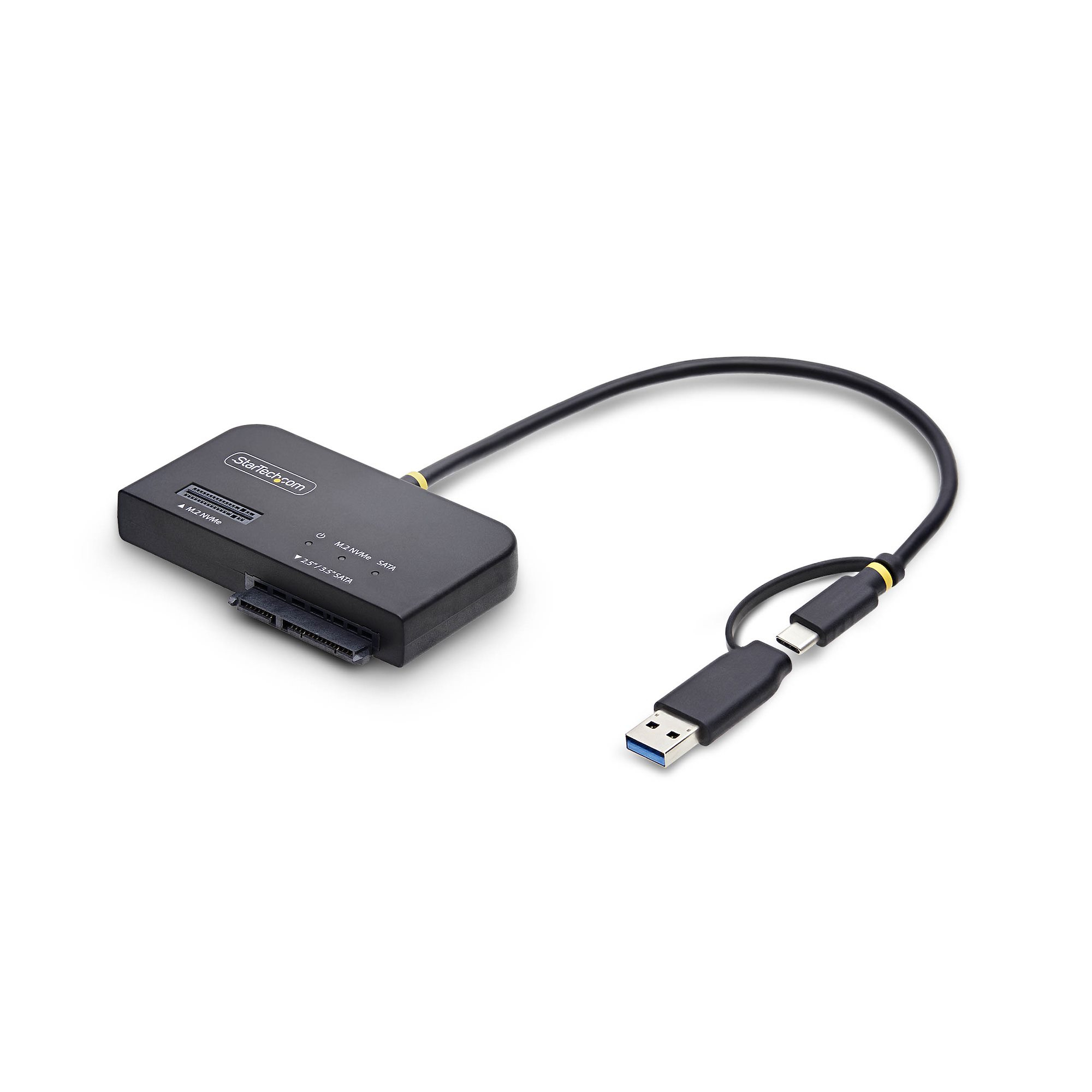

StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key

SKU
USB31CSAT3M2E
kr 432,14 eks. mva.
Ikke på lager Bestillingsvare
StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key
Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps

Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.

External Drive Access over USB-C and USB-A

Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.

Compact Form Factor

Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access.
SKU USB31CSAT3M2E
EAN 0065030920575
Specification
Hard drive
Storage media typeHDD, SSD
Storage drive interfaceM.2, Serial ATA III
Storage drive sizes supported2.5,3.5"
Number of storage drives supported2
Ports & interfaces
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Technical details
UASP supportYes
Package width190 mm
Package height54 mm
Maximum data transfer rate10 Gbit/s
Product colourBlack
MaterialAcrylonitrile butadiene styrene (ABS)
Hot-swapYes
ChipsetJMS581DC
TRIM supportYes
Compliance certificatesRoHS, Trade Agreements Act (TAA)
Features
UASP supportYes
Maximum data transfer rate10 Gbit/s
LED indicatorsYes
Product colourBlack
MaterialAcrylonitrile butadiene styrene (ABS)
Hot-swapYes
ChipsetJMS581DC
TRIM supportYes
Cooling
Number of fans0 fan(s)
Power
Power plug typeType H
AC input voltage12 V
Input current2 A
Output voltage12 V
Output current2 A
Weight & dimensions
Width88.4 mm
Depth360.6 mm
Height14.1 mm
Weight50 g
Packaging data
Package depth123 mm
Package width190 mm
Package height54 mm
Package weight330 g
Packaging content
Quick installation guideYes
Included power plug typesANZ, EU, JP, NA, UK
AC adapter includedYes
Interface adapters includedUSB Type-A male - USB Type-C female
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%
Indication
LED indicatorsYes
Ethernet LAN features
LED indicatorsYes
Other features
ChipsetJMS581DC
Compliance certificatesRoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width400 mm
Master (outer) case length290 mm
Master (outer) case height275 mm
Products per master (outer) case20 pc(s)
Manufacturer StarTech.com
PDF Url https://objects.icecat.biz/object
Availability N
